Specifications

Infusion Fluid/Blood Warmer Heater

Flow Rate: 2~20ml/min

Tube Size:3.0~4.0mm

Classification:Class I / Type B

Veterinary/Vet Infusion Warmer

High accurate digital control for temperature

Portable and easy to use

Verinary/Vet Infusion Warmer

High accurate digital control for temperature

Portable and easy to use.

High quality & Beautiful design

Special light for night operation;

 Portable and easy to use.

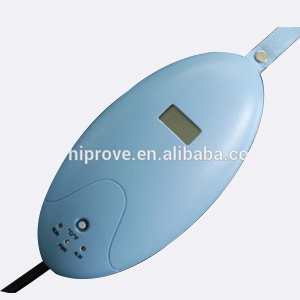

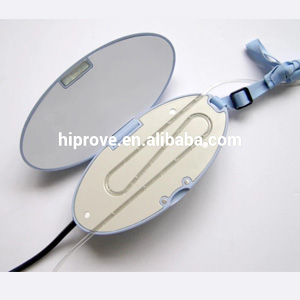

Infusion Fluid Warmer HIP-TF-II is an indirect heating device (dry heat warmer) and can be used repeatedly with standard IV infusion tubing set. The transfused fluid is heated up while passing through the infusion tube which is placed in‘S’shaped channel on the heating plate of the warmer. HIP-TF-II is reliable and easy to use in various clinic sites.

Benefits

   1. Portable and easy to use.

   2. No special training is required.

   3. Setup can be finished in 1 minute at most.

   4. High accurate digital control for temperature.

   5. Infusion fluid is regulated automatically to the set temperature in short time.

   6. Acoustic and visible alarming mechanism prevents from over-temperature; automatic power cut-out protect patient from overheat of fluid.

   7. Saving your cost because no special disposable sets are needed. HIP-TF-II is just used with   standard I.V. tubing.

Applications

Routine transfusion.

Low flow rate infusion in ICU.

Transfusion exchange

 High calorie infusion

Tube Size

 3.0~4.0mm

 Flow Rate

 2~12ml/min (against temperature span: 25°C~41°C)

 Power

 110V±11V (AC) or 220V±23V (AC) Max. 70W

 50±2%Hz

 Classification

 Class I / Type B

 Operation Conditions

 5~40°C; Relative humidity: ≤ 80%

 Packing Dimension: 36.5x15.5x12.5cm

 Weight:600g
