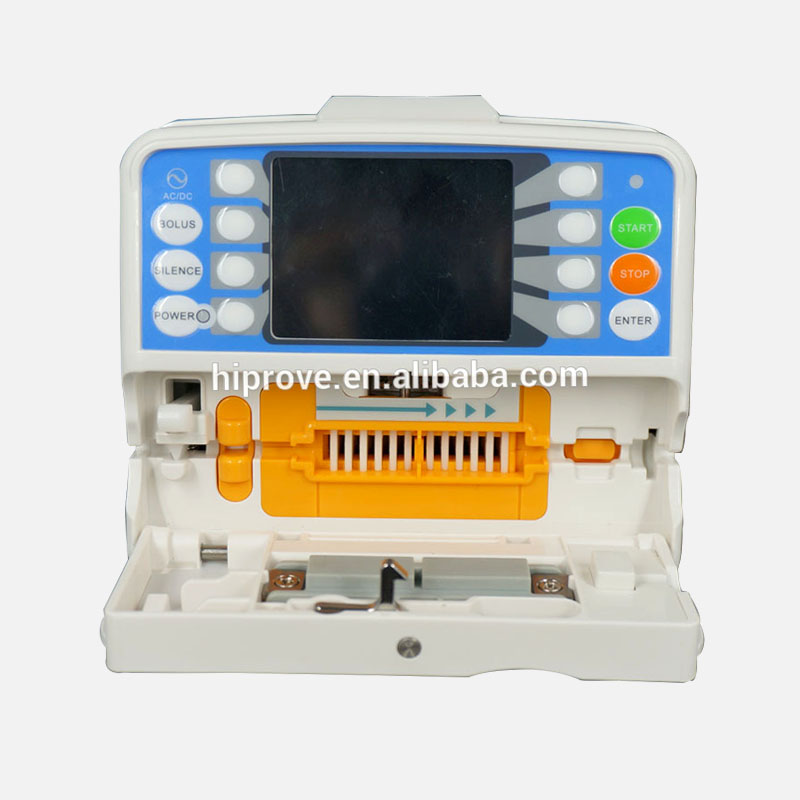

| Model No.: 200Vet Infusion Pump | ||
| Flow rate range | 0.1~1200 ml/h. Micro mode: 0.1-99.9 ml/hr in 0.1 ml increments | |
| Infusion mode | rate mode, drip mode ( ml/h and drops/min can be switched) | |
| Volume to be infused (VTBI) | 0 ~ 9999 ml | |
| Volume Infused (∑) | 0 ~36000 ml | |
| Infusion accuracy | ±5% | |
| Applicable infusion set | Support a wide variety brands of infusion set including major manufacturers & selected local brands | |
| KVO rate | 1 ~ 5 ml/h | |
| Bolus rate | 300 ~ 1200 ml/h | |
| Purge | 600 ml/h | |
| Air bubble detection | Ultrasound sensor detection with four levels of air in line alarm adjustable | |
| Occlusion pressure | 3 adjustable occlusion pressure settings: low, middle and high | |
| Alarms | Visual and audible alarms: Door open, Air-In-Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc. | |
| Computer Interface | RS232 (optional) | |
| History records | 2000 history records | |
| Power supply | AC:100~240V,50/60Hz DC:12V ±1V | |
| Battery | Rechargeable lithium polymer battery,7.4V,2100mAh | |
| Can operate for more than 3 hours after fully charged at 25ml/h. | ||
| Battery recharge time | 10hs recharging when machine is turned on, 3hs recharging when machine is off. | |
| Power consumption | 25VA | |
| Classification | Class I, type CF | |
| Water Proof Level | IP×3 | |
| Mode of operation | continuous | |
| Dimensions | 145×100×120 mm(length×width×height) | |
| Displaying mode | 4.3 inch high resolusion LED displaying screen | |
| Operating conditions | Temperature:5°C~40°C,relative humidity:10~95%, | |
| air pressure:86~106kPa | ||
| Transport conditions | Temperature-20°C~+60°C,relative humidity:10~95%, | |
| air pressure:50~106kPa | ||
| Storage conditions | Temperature-20°C~+45°C,relative humidity:10~95%, | |
| air pressure:50~106kPa | ||
