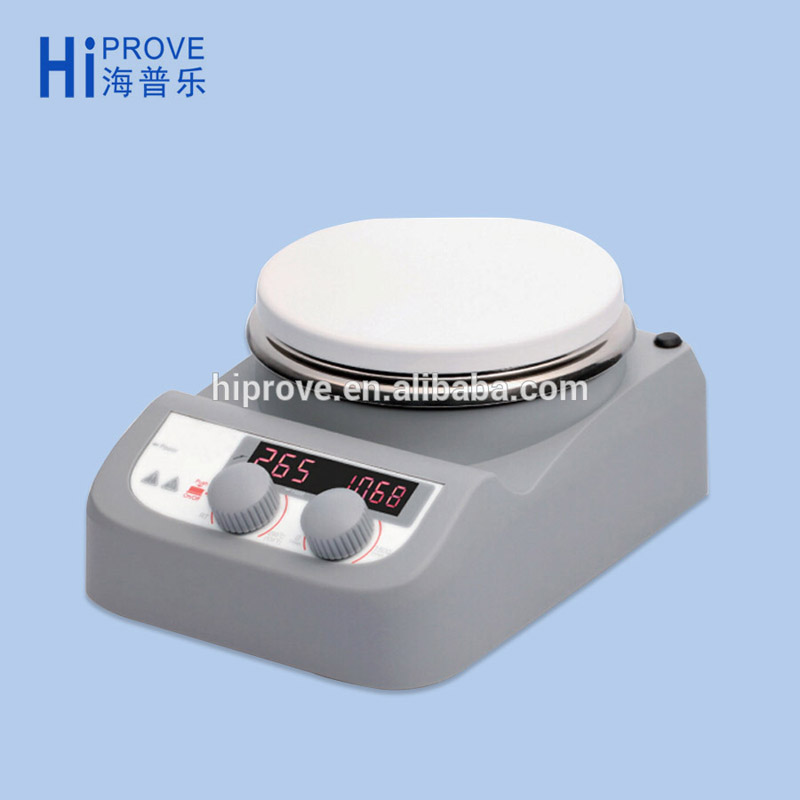

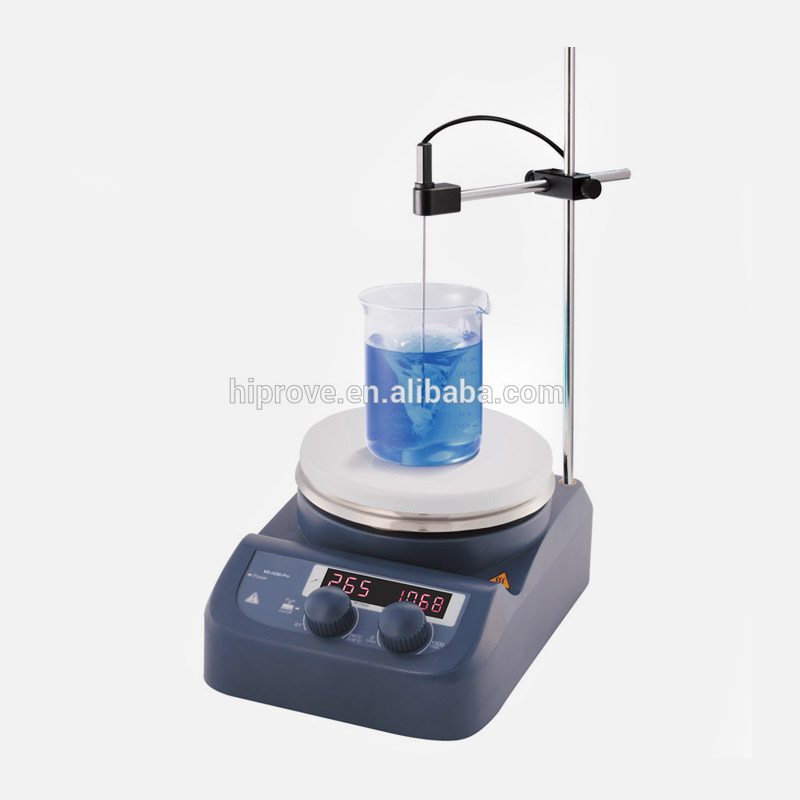

Digital Display Heating Magnetic Stirrer
Quick Details
  • Brand Name:
  • Hiprove
  • Model Number:
  • MS-H280-PROT
  • Place of Origin:
  • Shandong, China (Mainland)
  • Work Plate dimensions:
  • Diameter 135mm(5 inch)
  • Work plate material:
  • Stainless steel cover with ceramic
  • Motor Type:
  • DC motor
  • Power:
  • 515W
  • Voltage:
  • 100-120/200-240V 50/60Hz
  • Max. Stirring quantity (H2O):
  • 3L
  • Max. magnetic bar (length):
  • 50mm
  • Speed /Temperature display:
  • LED
  • Heating temperature range:
  • Room temp. -280℃ increment 1℃
  •
Packaging & Delivery
  • Packaging Details:
  • 1PCS/CTN, CTN SIZE: 15268 CM,
  • Delivery Time:
  • Shipped in 7 days after payment
Product Description

Product Description:

CE, ISO Certificate

This is a perfect device for handling small volume task on daily application, as a low temperature magnetic stirrer with Max. temperature at 280℃.


Feature:

1: Digital temperature control with Max. temperature to 280℃

2: Digital speed control with Max. speed up to 1500rpm

3: Stainless steel work plate with ceramic coating provides good chemical-resistant performance

4: External temperature control is possible by connecting the temperature sensor (PT 1000) with an accuracy at ±0.5℃

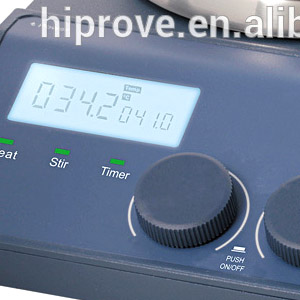

5. LED display shows temperature and speed

6. The “HOT” warning will flash when the work plate temperature is above 50℃ even if the hotplate is turned off

Specification:

Specification MS-H280-PRO
Work Plate dimensions Φ135mm(5 inch)
Work plate material Stainless steel cover with ceramic
Motor Type DC motor
Motor rating input 5W
Motor rating output 3W
Power 515W
Heating output 500W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 1
Max. Stirring quantity (H2O) 3L
Max. magnetic bar (length) 50mm
Speed range 100-1500rpm
Speed display LED
Temperature display LED
Speed display resolution ±1rpm
Heating temperature range Room temp. -280℃ increment 1℃
Control accuracy of work plate ±1℃(<100℃) ±1%(>100℃)
Over temperature protection 320℃
Temperature display accuracy ±1℃
External temperature sensor PT1000 (accuracy±0.5℃)
“Hot” warning 50℃
Protection class IP21
Dimension (W x D x H) 150*260*85mm
Weight 1.8 kg
Permissible ambient temperature and humidity 5-40℃ 80%
