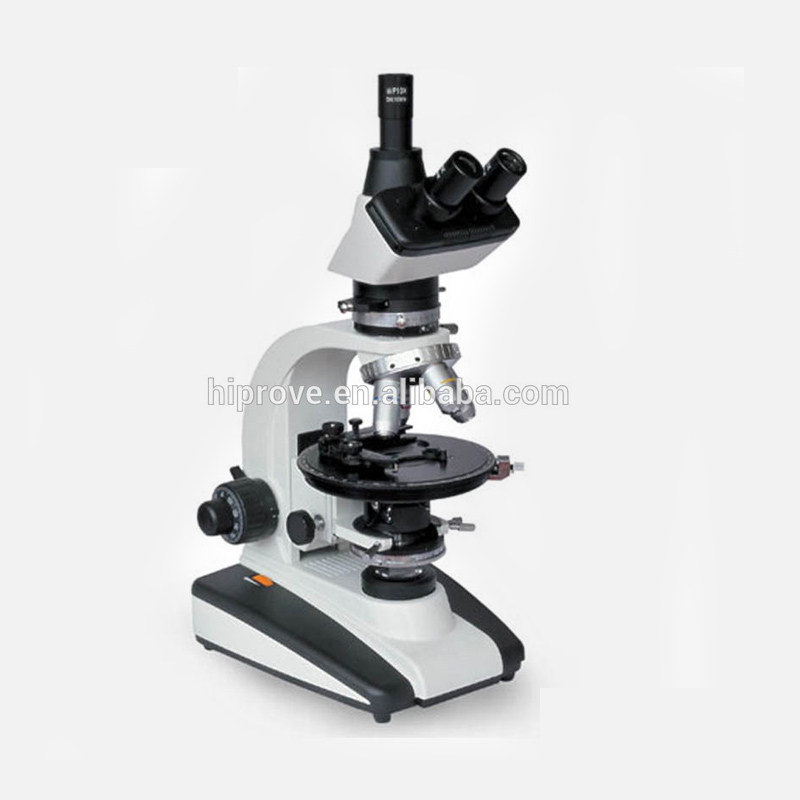

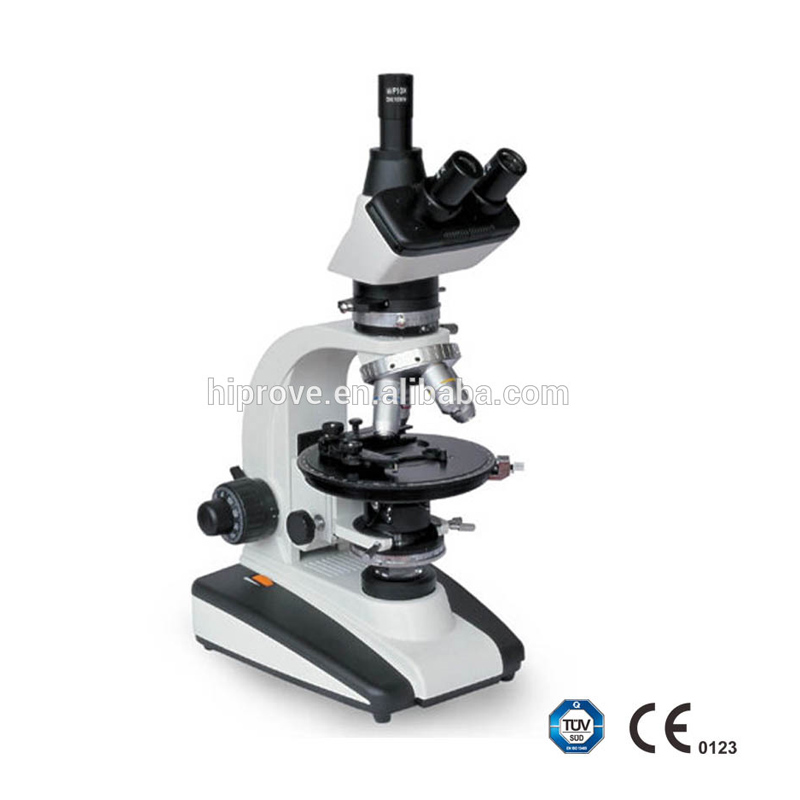

Trinocular Polarizing Microscope
Quick Details
  • Place of Origin:
  • Shandong, China (Mainland)
  • Brand Name:
  • Model Number:
  • HIP-XP-501T
  • Theory:
  • Polarizing Microscope
  • Drawtube:
  • Monocular
  • Certificate:
  • CE ISO
  • Model:
  • XP-501T
  • Microscope type:
  • Polarizing Microscope
Packaging & Delivery
  • Packaging Details:
  • wooden
  • Delivery Time:
  • 7 days after payment
Product Description

 Model XP-501 Transmission Polarizing microscope is one of the most professional instruments, in common use, for Geological, Mineral, Metallurgical departments and relative Academy.

Recent years, with the development of optical technology, the Polarizing microscope is in widely use. Transmission Polarizing microscope is a very suitable product. The user can make single polarizing view, orthogonal polarizing view, cone light view and micro-photograph. The microscope is equipped with attachment, such as gypsum(1 λ),mica(1/4 λ ) test piece, quartz wedge and attachable mechanical stage. It is a novel microscope with maturity function and nicer quality

Specification       Model
Viewing head   Sliding Trinocular Head. Inclined at 45 ° ( 52mm -74mm )
Eyepiece   WF10 × /18mm Y
  10 × gridding eyepiece Y
  10 × with reticule Y
  WF10 × 22mm
Objective   Achromatic objective: 4 × ,10 × ,25 × , 40 ×  (S),63 × (S)
Stage   Round revolving stage Y
  Stage dia: Φ 160mm
  Rotatable: 360 °
Condenser   Swing type N.A1.25 Abbe condenser with iris diaphragm & filter Y
Focusing   Coaxial coarse&fine focusing adjustment with rack and pinion

  mechanism Fine focusing scale  Value  0.002mm

Collector   High brightness light collector Y
Light source   Halogen tungsten bulb 6V/30W.AC 85V-230V Y
  Adjustable brightness Y
Optional Accessory   Eyepieces: WF16x,WF20x,P16x

  1.3Mega,3.0Mega  Pixels CMOS Digital camera eyepiece

 Mark” Y ”standard outfit. Mark:” N ”optional parts.
