Current: Products> Medical Equipments > >Wireless Handheld Pocked Color Doppler Ultrasound
Wireless Handheld Pocked Color Doppler Ultrasound
Quick Details
  • Type:
  • Portable Ultrasonic Diagnostic Devices
  • Brand Name:
  • Model Number:
  • WH-2
  • Place of Origin:
  • Shandong, China (Mainland)
  • Rechargable Battery:
  • 8 hours scanning time
  • Operation:

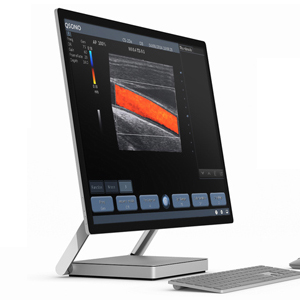

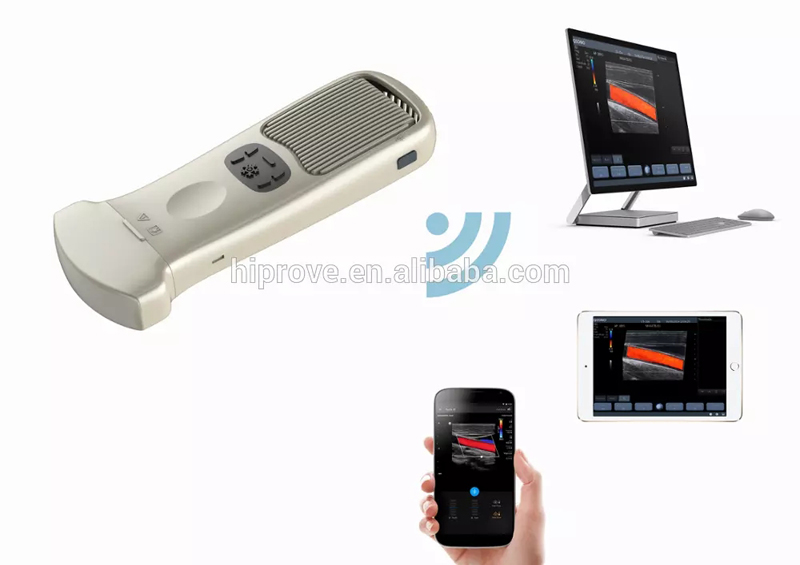

  • WiFI connect to any Android or Window System
  • Imaging mode:
  • 2D, M mode, Color Doppler, PW
  • Language:
  • Chinese, English, , Russian, Spanish, Italian, Czech
  • Cine-loop:
  • 341 frames movie playback stored
  • Max scanning Depth:
  • 310mm
  • Warranty:
  • 2 years
  • Waterproof:
  • IPX6 standards
  • Weight:
  • 300g

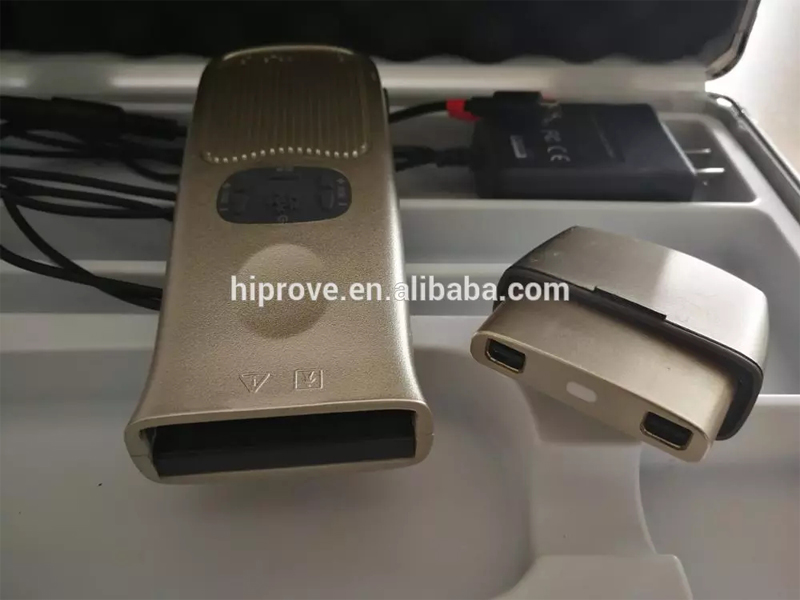

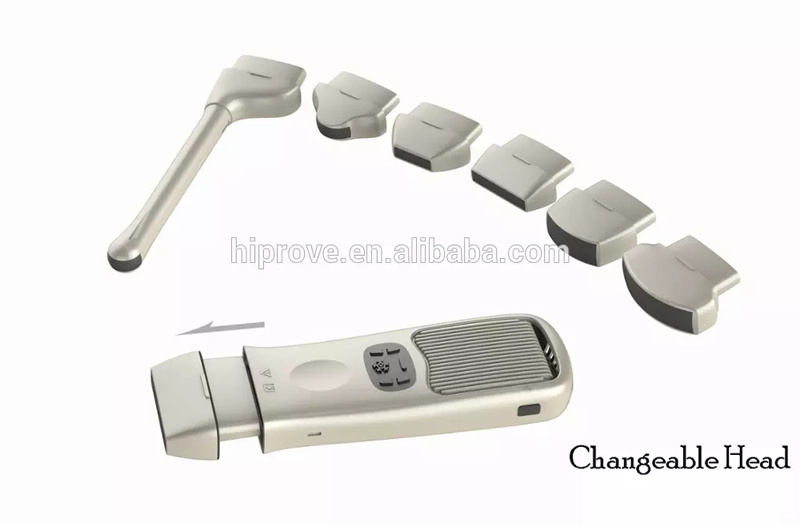

  • Scanning head:
  • Can be changed
Packaging & Delivery

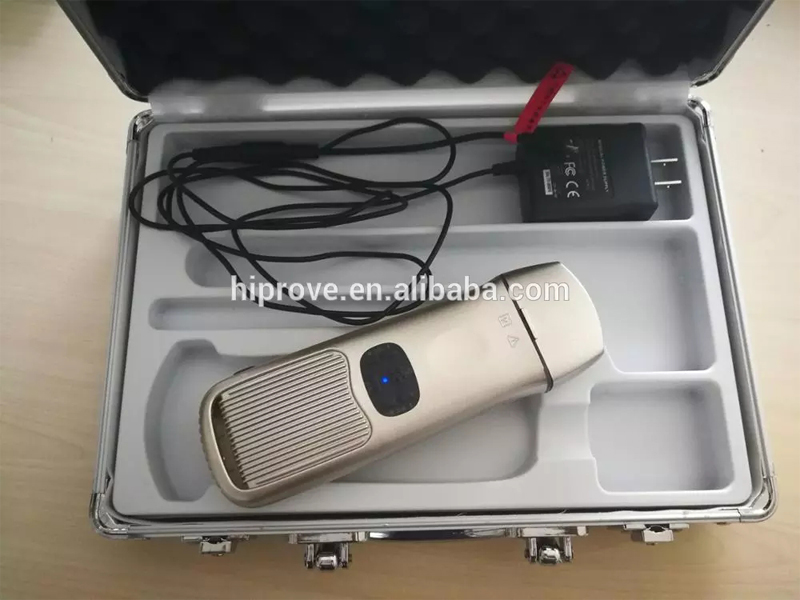

  • Packaging Details:
  • Export package
  • Delivery Time:
  • 7 days
Product Description

Platform:                 Android, Window

Modes:                                     B, B&M, 2B, 4B, THI, Color, Power, PW

Gray level:                               256

Transducer Frequency:           2-11MHz

Digital Technology:                 Wide-angle imaging

                                                 Panoramic focusing technology

                                                 Compatible with high and low speed blood

                                                 Panoramic imaging

                                                 Frequency compounding

                                                 Space compounding

                                                 Rolling M technology

                                                 Real-time Dynamic Aperture

                                                 Tissue Harmonic Imaging

                                                 Tissue Specific Imaging

Max scanning Depth:             310mm




Operation:               WiFI connect to any Android or Window System

Cine-loop:                Based on the memory of the Android or windows device.

Zoom:                      Max 10 times

Language:                Chinese, English, Russian, Spanish, Italian, Czech


Imaging Processing

Pre-processing:                       Cloud processing technology

                                                 Fine blood flow imaging, high sensitivity


                                                 Dynamic range


                                                 M Soften

                                                 Noise suppression

Post-processing:                     Image enhancement

                                                 Gray map

                                                 Pseudo color map

                                                 Left/right reverse

                                                 Up/down reverse

Measurement and calculation

B mode:                                   Distance, angle, area, volume,

                                                 trace length, distance ratio, area ratio, histogram

M mode:                                  Distance, time, slope, heart rate

Color/Power/PW mode:        D velocity, D trace, PS/ED

Application package:             Abdomen, Small parts, Vascular, Obstetrics,

                                                 Gynecology, Cardiology, Neurology,

                                                 Urology, Orthopedics, Anesthesia





Power supply:                         12V 1.5A

Battery lifetime:                       5 hours

Net weight:                             About 365g

Waterproof level:                   Ipx6

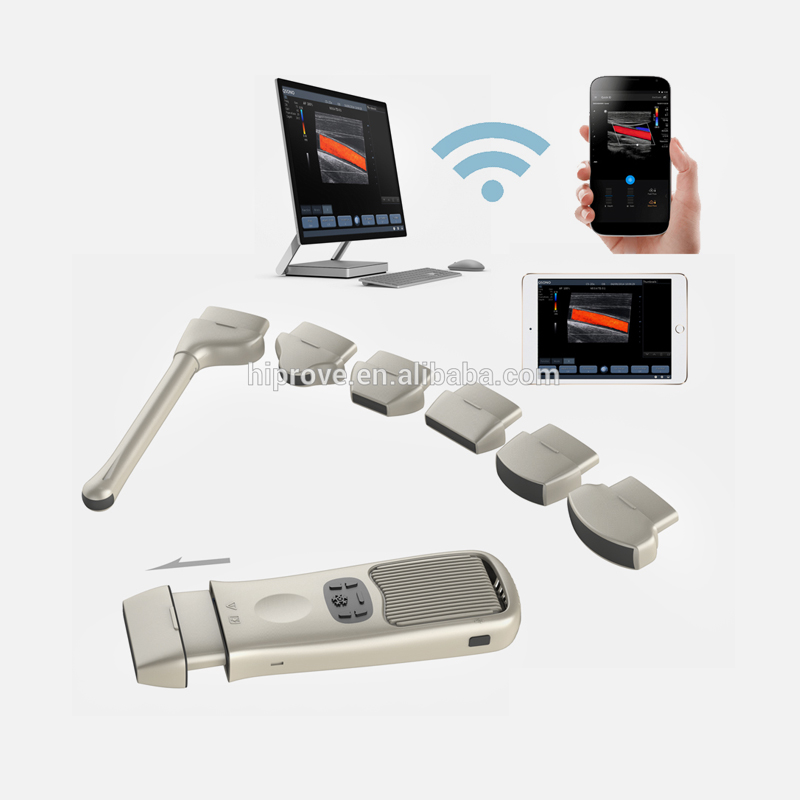

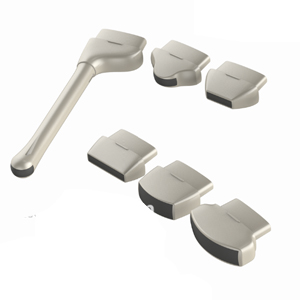

Multiple frequency probes

Images Mode Frequency(MHZ) Frequency Range(MHZ) Radiusof Curvature Application
Convex (HIP-C1) 3.2 2-5 R50 Abdomen, Gynecology Obstetrics, Urology, Cardiology
Convex (HIP-C2) 3.3 2-5 R50 Abdomen, Gynecology Obstetrics, Urology
Linear (HIP-L1) 7.5 6-11 L40 Vascular, Small Parts Neurology
Micro Convex (HIP-MC1) 6.5 5-9 R15 Abdomen, Gynecology Obstetrics, Urology
Linear (HIP-L2) 7.5 6-11 L25 Vascular, Small Parts Neurology
Transvaginal (HIP-T1) 6.5 5-9 R10 Gynecology, Urology


Interested in this product, please leave us a message
