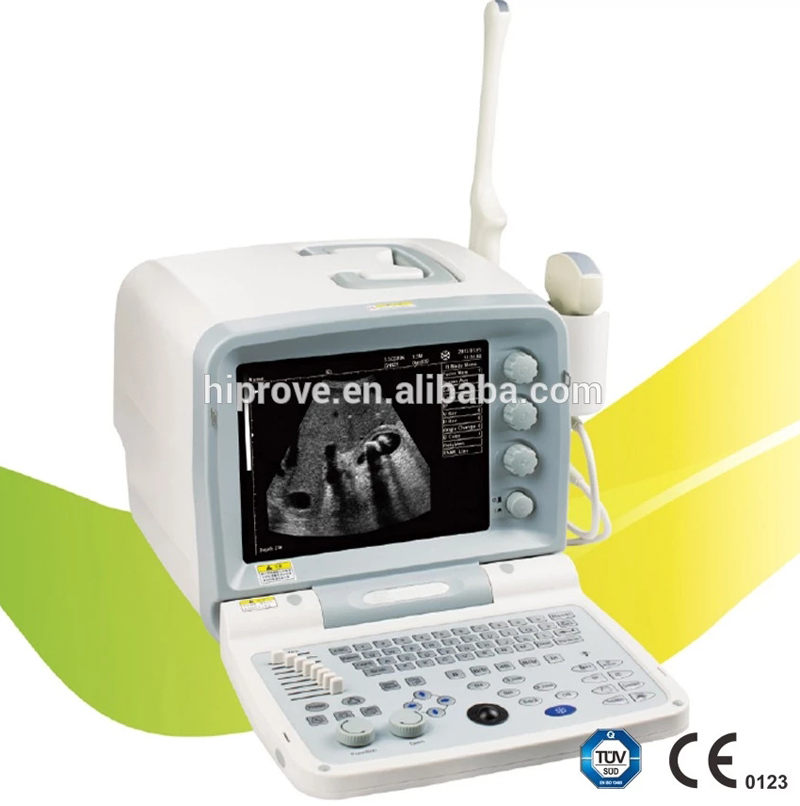

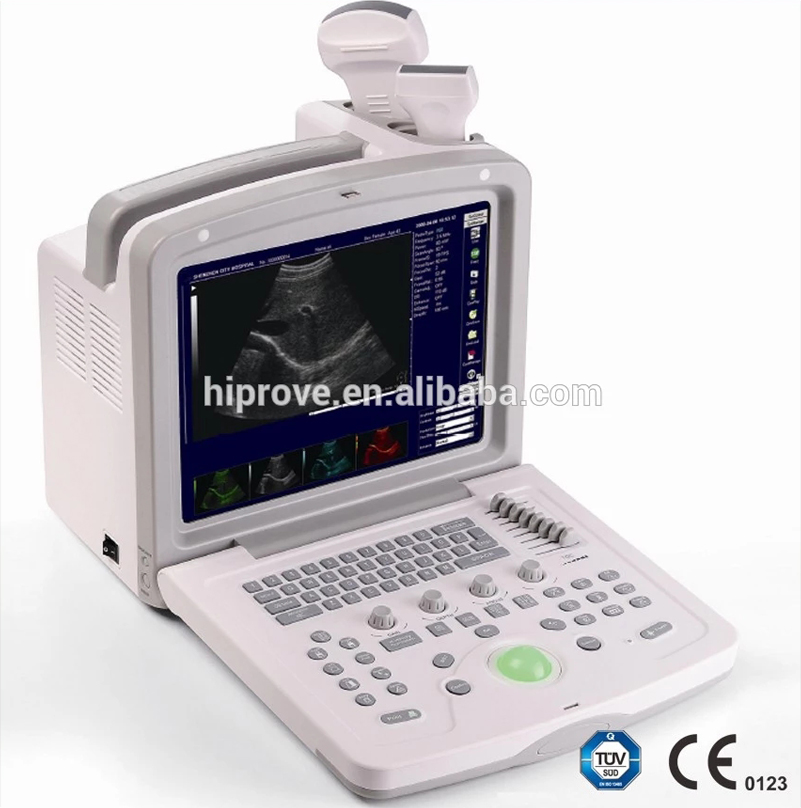

Digital Portable Ultrasound Scanner
Quick Details
  • Type:
  • Portable Ultrasonic Diagnostic Devices
  • Brand Name:
  • HIPROVE
  • Model Number:
  • HIP-5600
  • Place of Origin:
  • Shandong, China (Mainland)
  • Name:
  • 3D ultrasound
  • Application:
  • General
  • Imaging mode:
  • 2D, Free-hand 3D
  • Advanced technologies:
  • DBF, RDA, DRA, DRF, DFS
  • Adjustable depth:
  • 10 grades, max depth to 236mm
  • Display:
  • 10.4' high resolution color LED backlight display
  • Warranty:
  • 2 years
  • Color:
  • Optional
  • Weight:
  • 4.5kgs

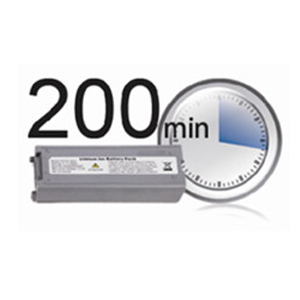

  • Built in battery:
  • 200 minutes work time
  •
Packaging & Delivery
  • Packaging Details:
  • 出口包
  • Delivery Time:
  • 7天
Product Description

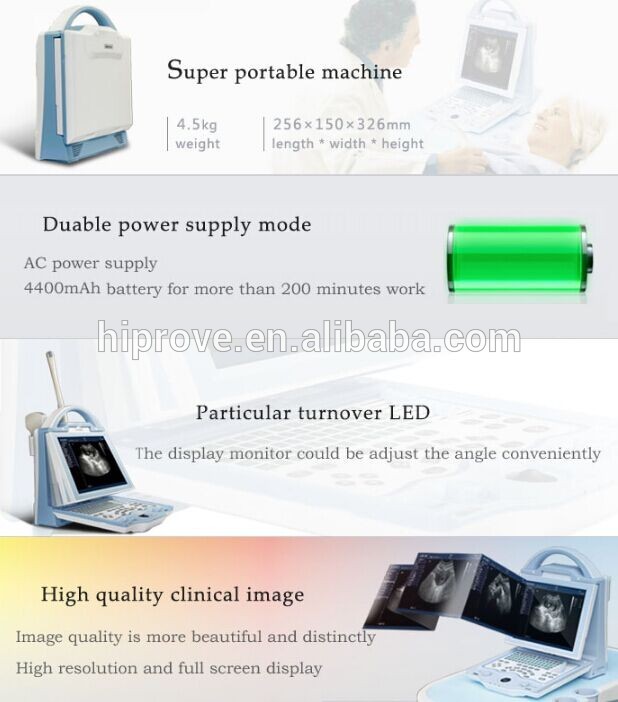

10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
      Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
      Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
      Two probe sockets, auto-identify different optional probe;
      Body marks:total 64 kinds body marks indicating probe position;
      Display mode:B,2B,4B ,B/M,M ;
      Adjustable depth: 10 grades, max depth to 236mm;
      Gain:0~127dB;
      Contrast:27~90dB;
      Gray scale:256;
      8 steps intelligent TGC;
       Frame frequency: 30 frames /second
      8 kinds pseudo colors;
      Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off.
      Cine loop:256 frames;
      Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);
      the gravel software package with real-time position line measurement
      Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
      Cardio measurement:Depth, slope, heart rate, cycle;
      Gynecology measurement and analysis: gynecology general measurement and gynecology report.
      OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
      Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
      One-key store: concise and practical;
      One-key review:fast, practical image review function;
      One-key Print;
      One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
      Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station);
      Unique One-key-light keyboard function for black room use;
      Display brightness adjustable;
      Dual TV output: PAL/NTSC, can connect video printer when necessary;
      Power supply:100-240V~1.2-0.6A  frequency:50-60Hz;
      Power supply adaptor output:DC12.8V 3.0A;

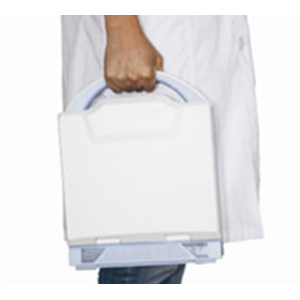

      Main unit weight:4.5kg(without accessories);
      Main unit dimension:256×150×326mm(L×W×H);
