LZJ-II Series Colposcopes are precise optical instruments designed especially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. HIP II Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. They are the essential instruments for gynecologic examination.
LZJ-II Colposcope:

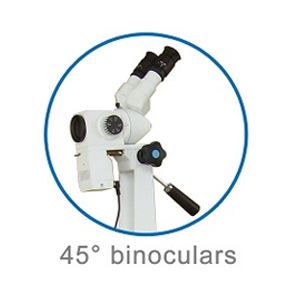

Observation angle: 45°tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Fine focusing distance: 20mm
Balance arm: Counterweight adjustable and can be locked
Illumination: Coaxial illumination with 10W LED light source, brightness adjustable
Illumination: >20000lux
Filter: Build-in green & blue filter

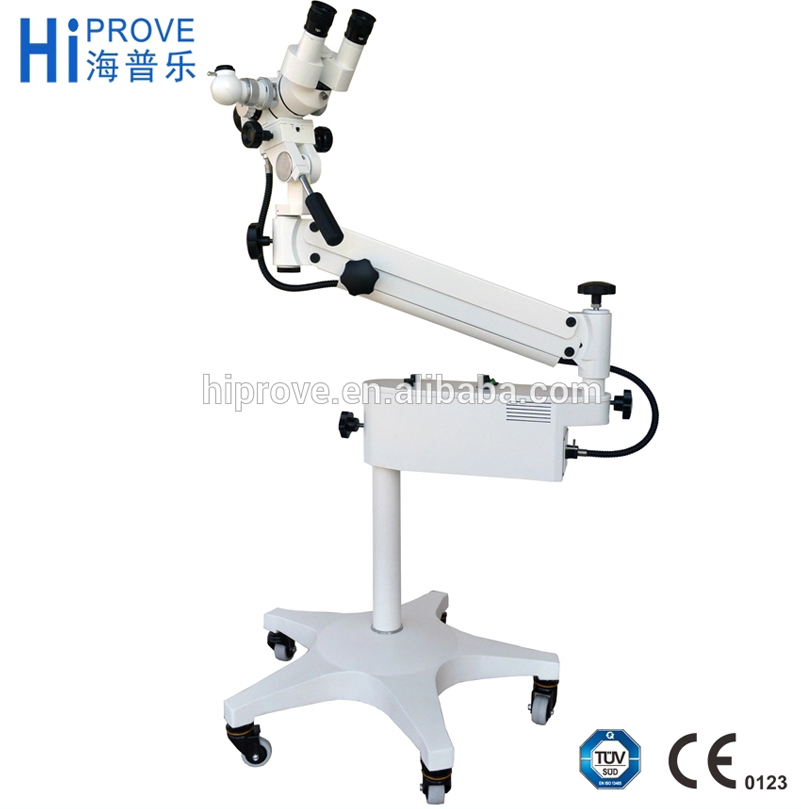

Stand: Short column fitted on the five-star base

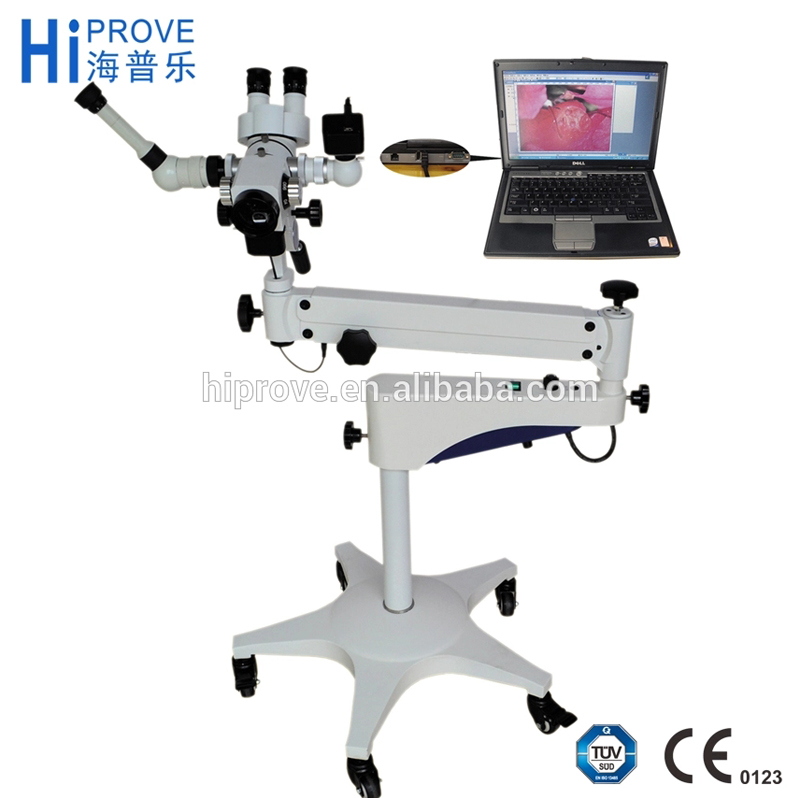

With beamsplitter, and TV adapter, C-mount 1/3" CCD camera attachable
Power supply: AC100V-240V
Optional accessories: Demonstrator, Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200), Photo adapter, Monitor H1766, Objective (F=230mm & F=280mm)
HIP II Colposcope:
Observation angle: 45°tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Fine focusing distance: 20mm
Balance arm: Counterweight adjustable and can be locked
Illumination: Coaxial illumination with cold light source fiber-optic cable, 21V150W halogen lamp, brightness adjustable
Illumination: >15000lux
Filter: Build-in green & blue filter
Stand: Short column fitted on the five-star base
With beamsplitter, and TV adapter, C-mount 1/3" CCD camera attachable
Power supply: AC110V60HZ/AC220V50HZ
Optional accessories: Demonstrator, Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200), Photo adapter, Monitor H1766, Objective (F=230mm & F=280mm)
HIP II-1L Colposcope:
Observation angle: 45°tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Fine focusing distance: 60mm
Illumination: Coaxial illumination with 10W LED light source, brightness adjustable
Illumination: >20000lux
Filter: Build-in green & blue filter
Stand: Column height adjustable fitted on the round base with 3 jaws
With beamsplitter, and TV adapter, C-mount 1/3" CCD camera attachable
Power supply: AC100V-240V
Optional accessories: Demonstrator, Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200), Photo adapter, Monitor H1766, Objective (F=230mm & F=280mm)
HIP II-1 Colposcope:
Observation angle: 45°tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Fine focusing distance: 60mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, 21V150W dual halogen lamp, brightness adjustable
Illumination: >15000lux
Filter: Build-in green & blue filter
Stand: Column height adjustable fitted on the round base with 3 jaws
With beamsplitter, and TV adapter, C-mount 1/3" CCD camera attachable
Power supply: AC110V60HZ/AC220V50HZ
Optional accessories: Demonstrator, Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200), Photo adapter, Monitor H1766, Objective (F=230mm & F=280mm)
HIP II-1D Colposcope:
Observation angle: 45°tilted
Magnification of eyepiece: 10X & 20X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=230mm & F=280mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 1.8X-27.1X
Linear field: 69mm-8.5mm
Fine focusing distance: 60mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, 24V150W dual halogen lamp, brightness adjustable
Illumination: >15000lux
Filter: Build-in green & blue filter
Stand: Column height adjustable fitted on the round base with 3 jaws
With beamsplitter, and TV adapter, C-mount 1/3" CCD camera attachable
Power supply: AC100V-240V
Optional accessories: Demonstrator, Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200), Photo adapter, Monitor H1766, Objective F=300mm & Eyepiece 16X
Specifications
| Table of Specification for HIP II Series Colposcope: | ||||||
| Item | LZJ-II | HIP II | HIP II-1L | HIP II-1 | HIP II-1D | |
| Observation angle | 45º tilted binocular observation unit | |||||
| Magnification of eyepiece | 16X | 10X & 20X | ||||
| Interpupillary distance | 50mm-80mm | |||||
| Diopter | ±5D | |||||
| Focal length of objective | F=300mm(M58x0.75) | F=230mm & F=280mm | ||||
| Magnification changer | 5-step magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X | |||||
| Total magnification | 2.7X, 4.4X, 6.6X, 10X, 16.6X | 1.8X-27.1X | ||||
| Linear field | 90mm, 55mm, 37mm, 24mm, 15mm | 69mm-8.5mm | ||||
| Beamsplitter | 50:50 | |||||
| TV adapter | C-mount 1/3" CCD camera attachable | |||||
| Fine focusing distance | 20mm | 60mm | ||||
| Balance arm | Counterweight adjustable | No | ||||
| Illumination system | Coaxial illumination,brightness adjustable | |||||
| 10W LED light | 21V150W halogen lamp | 10W LED light | 21V150W dual halogen lamp | 24V150W dual halogen lamp | ||
| Illumination | >20000lux | >15000lux | >20000lux | >15000lux | >15000lux | |
| Filter | Built-in Green and Blue | |||||
| Stand | Short column fitted on the five-star base | Column height adjustable fitted on the round base with 3 jaws. The round base of HIP II-1L built-in circuit board | ||||
| Optional accessories | Demonstrator, Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200), Photo adapter, Monitor H1766 | |||||
| Table of Optical Characteristics for HIP II Series Colposcope (16X Eyepiece): | |||||||||||||||
| Focal length of objective | F=300mm | F=230mm(optional) | F=280mm(optional) | ||||||||||||
| Magnification on handwheel | 2.5x | 1.5x | 1x | 0.66x | 0.4x | 2.5x | 1.5x | 1x | 0.66x | 0.4x | 2.5x | 1.5x | 1x | 0.66x | 0.4x |
| Total magnification | 16.6x | 10x | 6.6x | 4.4x | 2.7x | 21.7x | 13.2x | 8.7x | 5.7x | 3.5x | 17.8x | 10.8x | 7.1x | 4.7x | 2.9x |
| Linear field (mm) | 15 | 24 | 37 | 55 | 90 | 11 | 18 |
28 |
42 | 62 | 14 | 22 | 35 | 54 | 84 |
| Resolution (LP/mm) | 78 | 61 | 40 | 30 | 21 | 86 | 68 | 52 | 35 | 27 | 80 | 63 | 42 | 31 |
22 |
