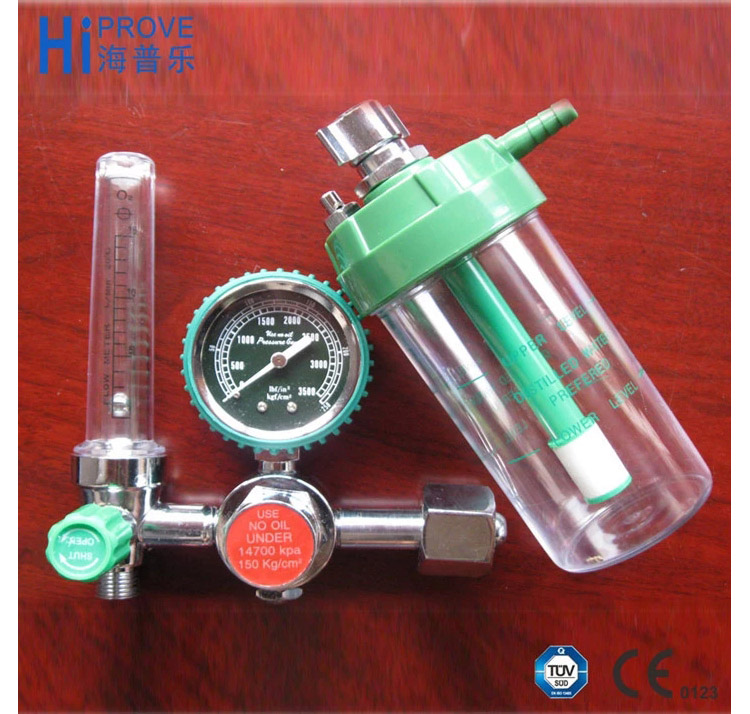

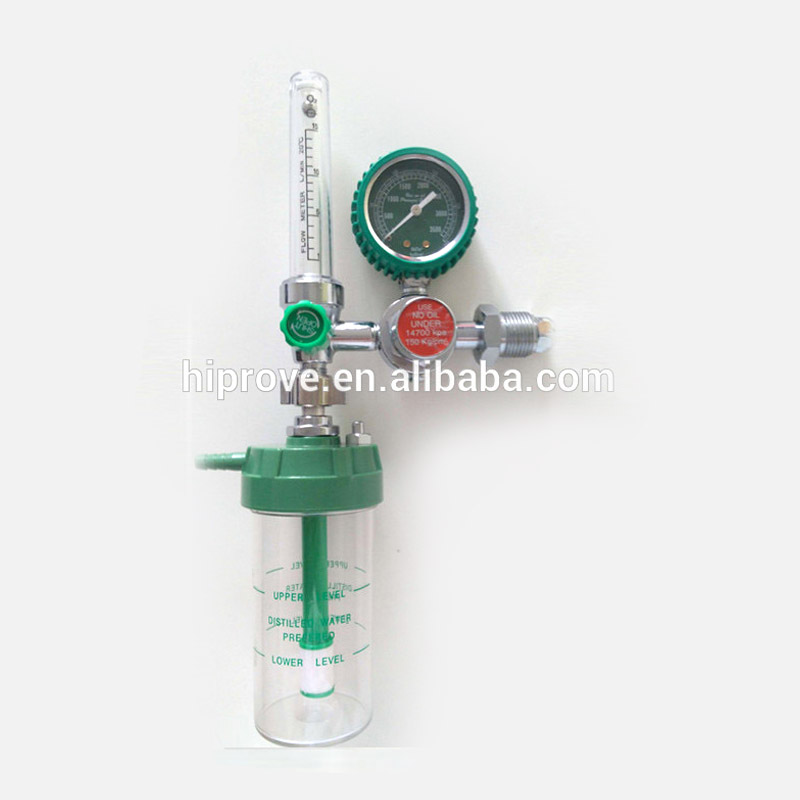

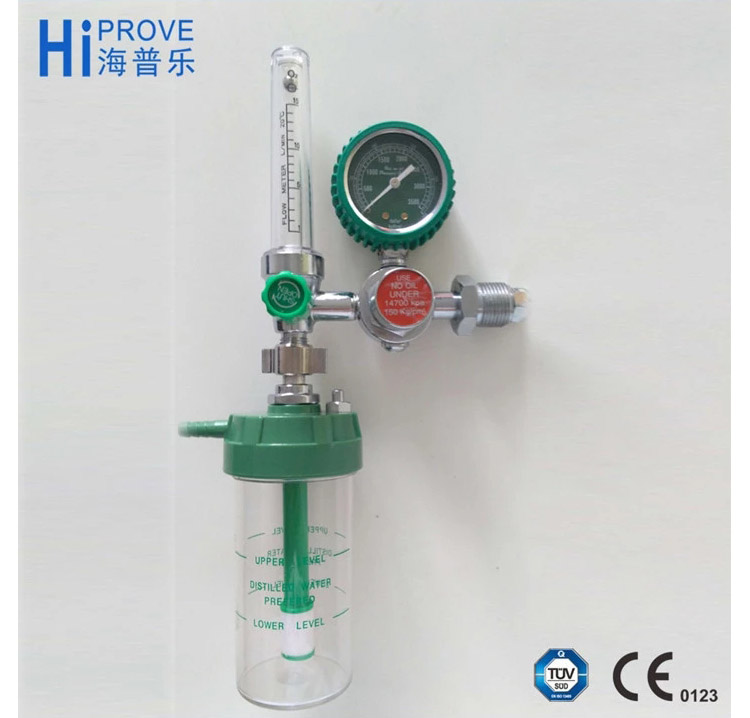

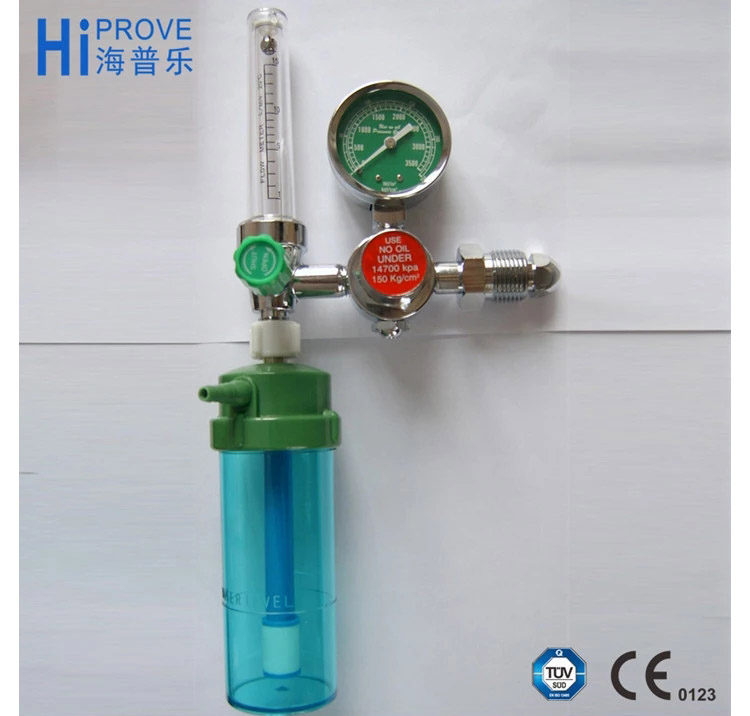

Medical oxygen regulator with flowmeter
Quick Details
  • Type:
  • Breathing Apparatus
  • Brand Name:
  • Hiprove
  • Model Number:
  • HP-MY-011
  • Place of Origin:
  • Shandong, China (Mainland)
  • Certificate:
  • CE & ISO
  • Working pressure:
  • 0.1-3 bar
  • Rate of Flow:
  • 15 L/min
  • Max Input pressure:
  • 150 bar
  • Color:
  • Green
  •
Packaging & Delivery

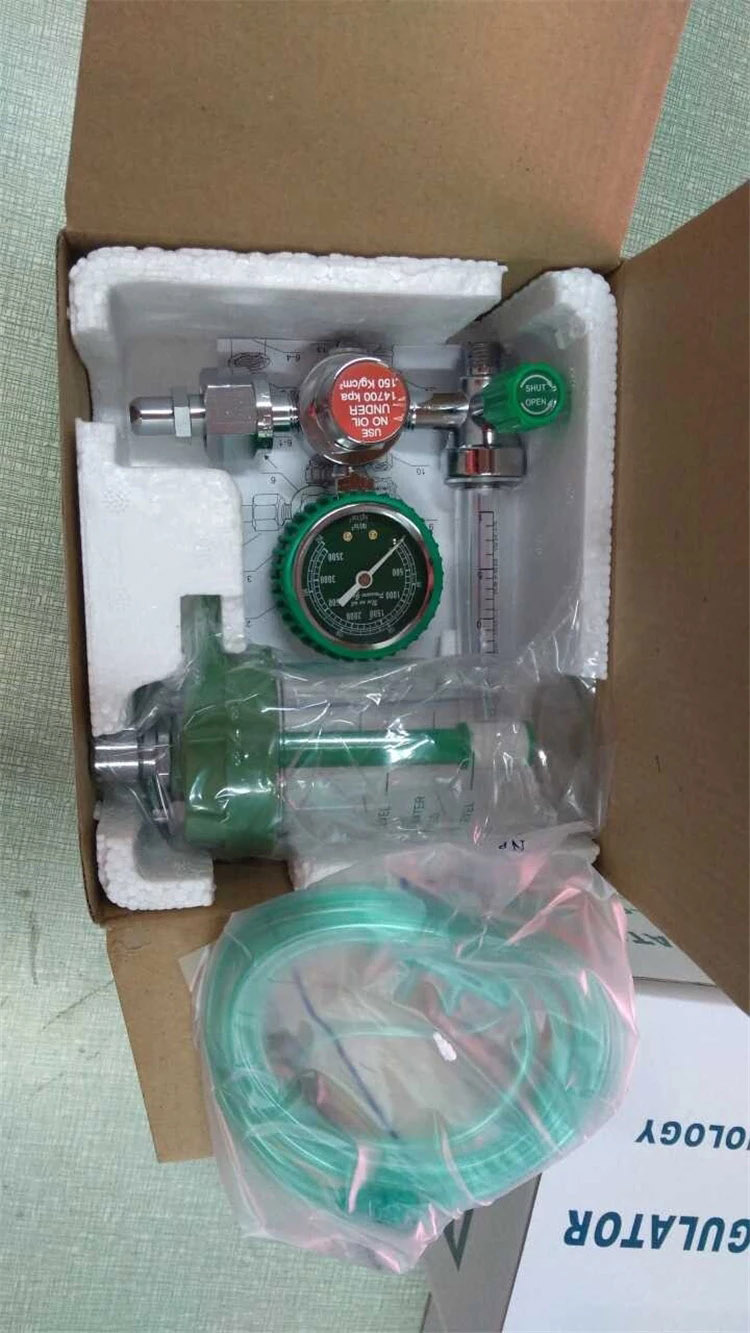

  • Packaging Details:
  • 55x41x34cm
  • Delivery Time:
  • within 15 days
Product Description

All series have passed the CE certificate
The main part uses the goodness copper, and cut with precision digitally controlled lathe.
Lengthening air inlet valve lever , fit for the different capacity of oxygen cylinder.

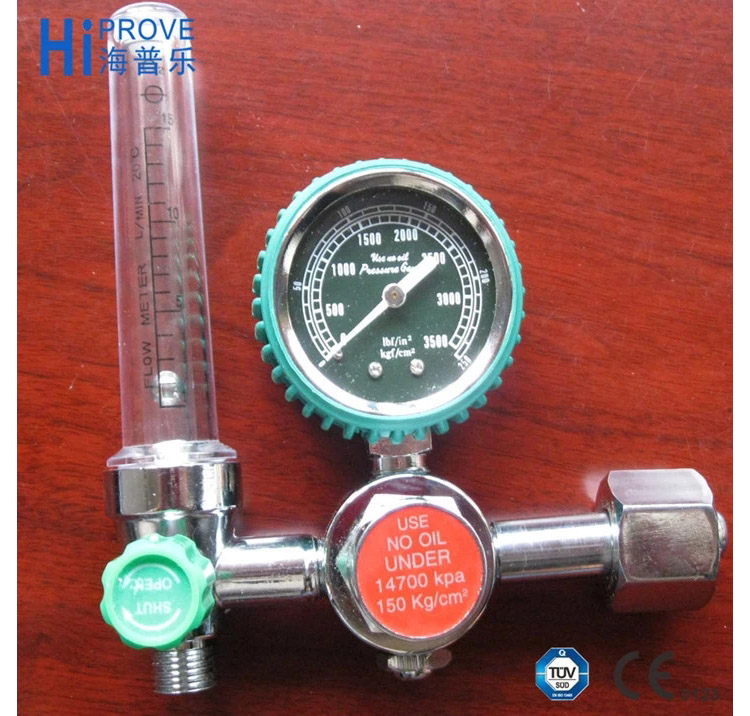

Integrated casting flowmeter
Flow tube, wet cup of high-strength polycarbonate plastic body

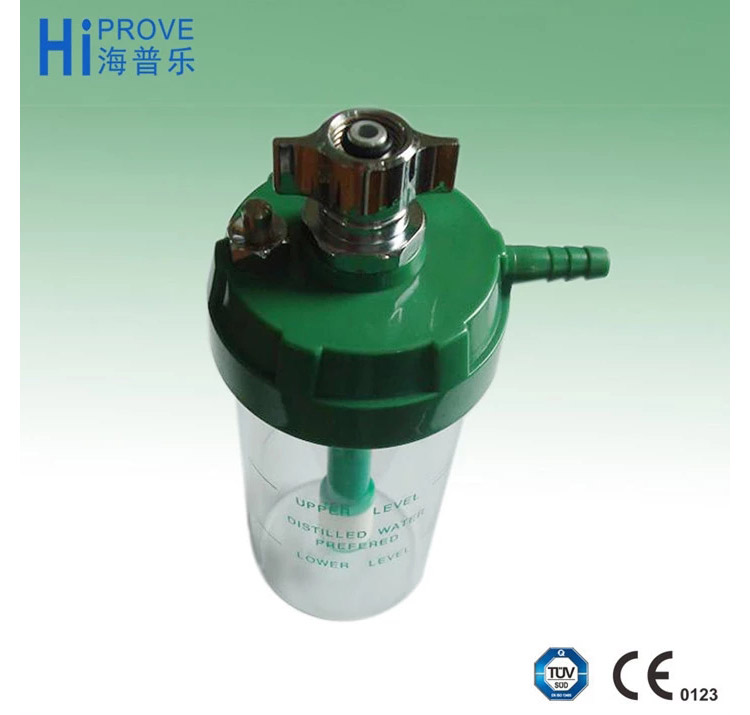

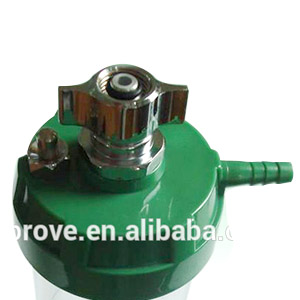

 High temperature high-pressure sterilized humidifier body, to meet European standards for B-level disinfection .The maximum temperature of 121 degree Pressure 0.142MPa
Polymer high-density filter, wet-based uniform.
Product Information:
Input pressure: 15 MPa
Output pressure : 0.2-0 .3 MPa
Safety valve: 0.35±0.05 MPa
Flow rate :1-10 L / min ,1-15L / min
Connecting thread: G 5 / 8, CGA540, male G 5 / 8, G3/4, DIN477 and CGA870.


Specification

Type Medium Metering Range(L/Min) Accuracy Entrance Pressure Exit Pressure Entrance Connection Screw Thread OutPut Connection Screw Thread
HP-MY-011 O2

1-10

1-15

Grade 4

12Mpa

15Mpa

0.2-0.3Mpa

G5/8-14-RH

CGA540-RH

G3/4-14-RH

8mm
