Operation Microscope
Quick Details
  • Place of Origin:
  • Shandong, China (Mainland)
  • Brand Name:
  • HIPROVE
  • Model Number:
  • XTY-180
  • Theory:
  • Video Microscope
  • Drawtube:
  • Binocular
  • Observation angle:
  • 0-180degree
  • Total Magnification:
  • 4.8X-16X
  • Magnification of observation:
  • 8X
  • Focal length of objective:
  • F=200mm 300mm 400mm
  • Magnification changer:
  • 3-step: 0.6X, 1X, 1.6X.
  • Fine focusing distance:
  • 10mm
  • Illumination:
  • Coaxial illumination, cold light source fiber-optic cable
  • Lamp:
  • LED
  • Filter:
  • Build-in green and yellow filter.
  • Accessories:
  • With 2-part arm and floor stand.
  •
Packaging & Delivery
  • Packaging Details:
  • 86X66X23cm
  • Delivery Time:
  • 在7天内
Product Description

Main Features

Magnification of binocular: 8X

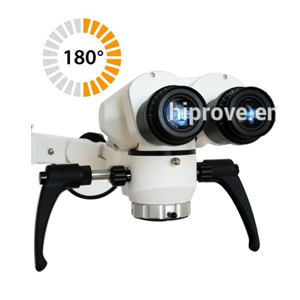

Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Valuable price!!!
Product Application
XTY-180 Operation Microscope using LED light source for coaxial illumination, with 0-180° inclinable binocular and 3-step magnification changer, have different working distance and magnification. It is featured for flexible handling and easy operation. It is sued for micro-operation in dental especially, and can be used for micros-operation in ophthalmology, ear-nose-throat, gynecology and surgery.

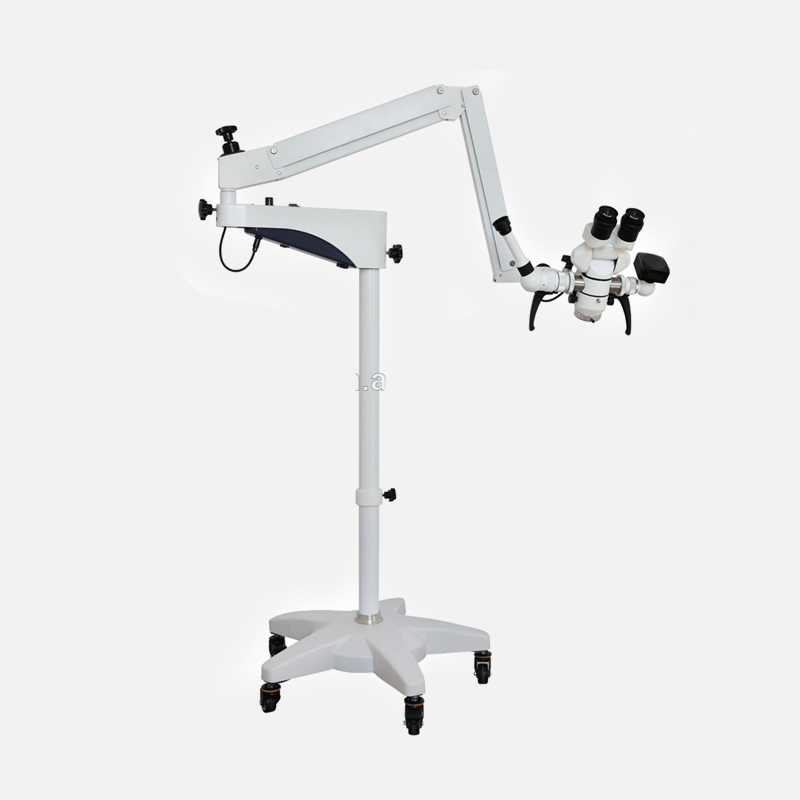

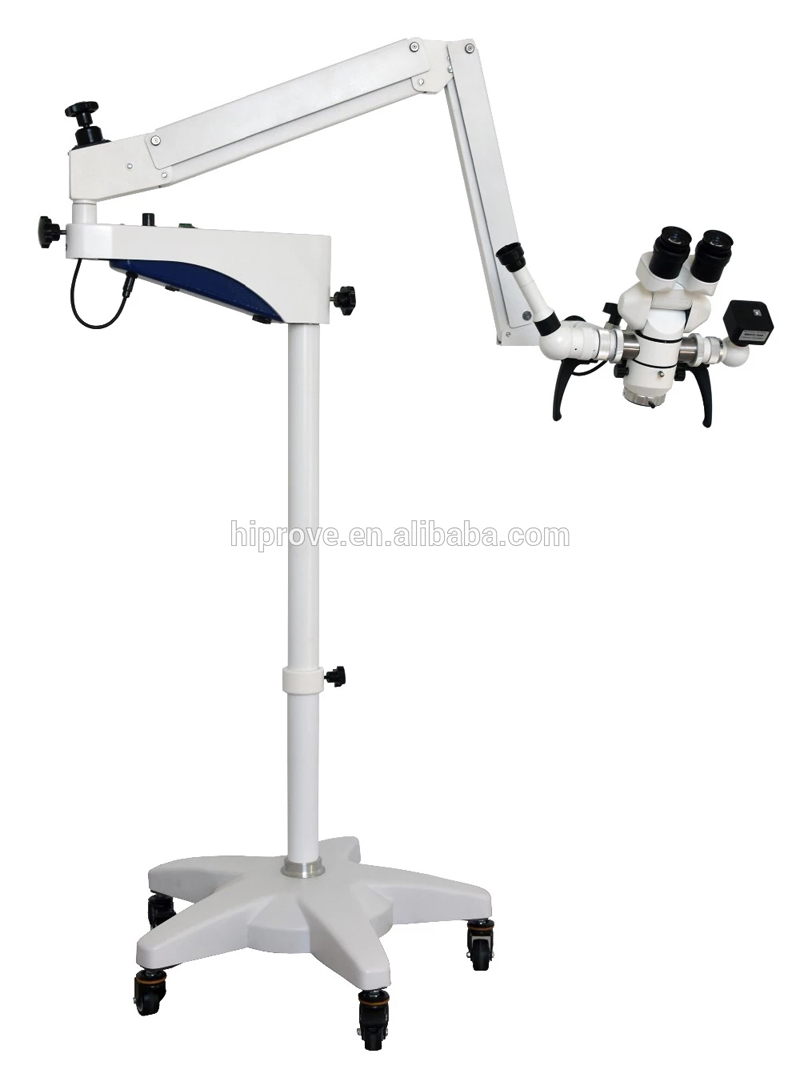

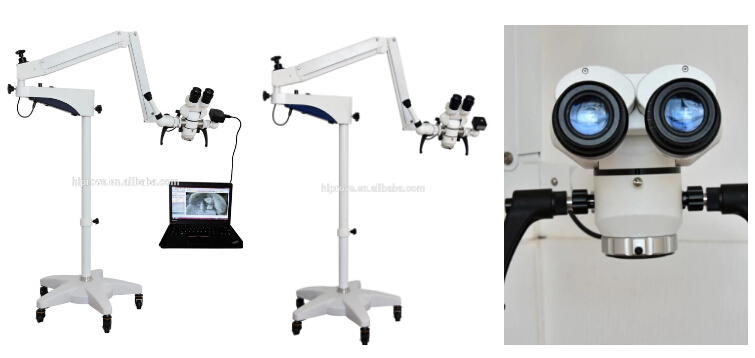

XTY-180 Operation Microscope:
Magnification of binocular: 8X

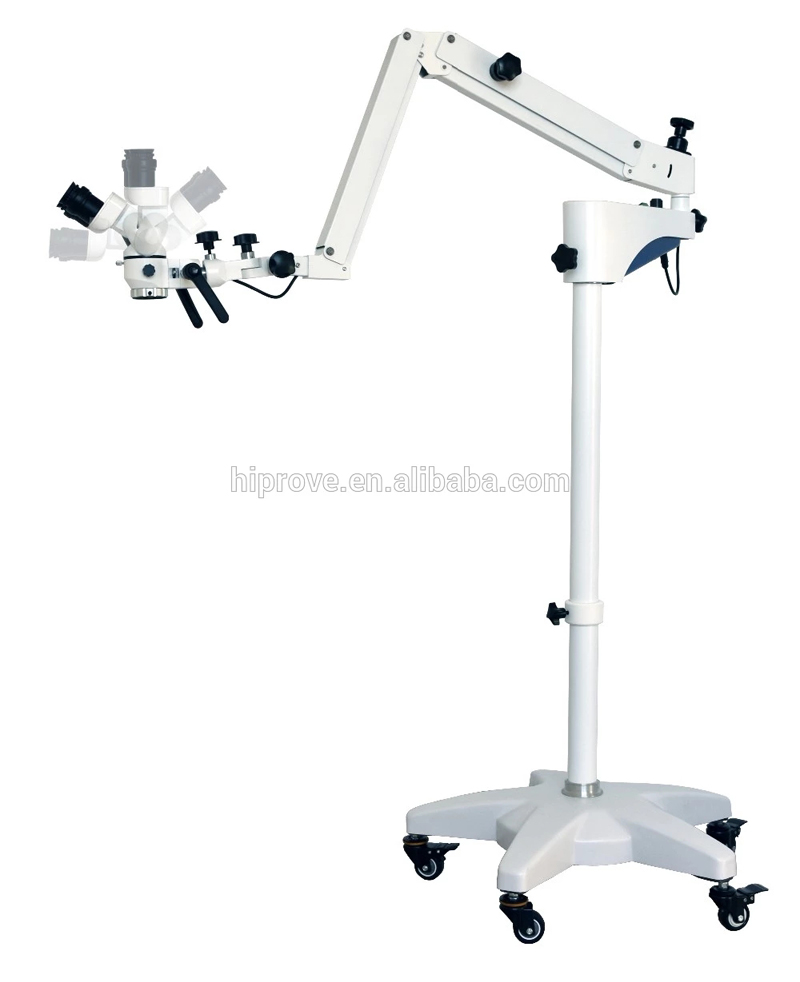

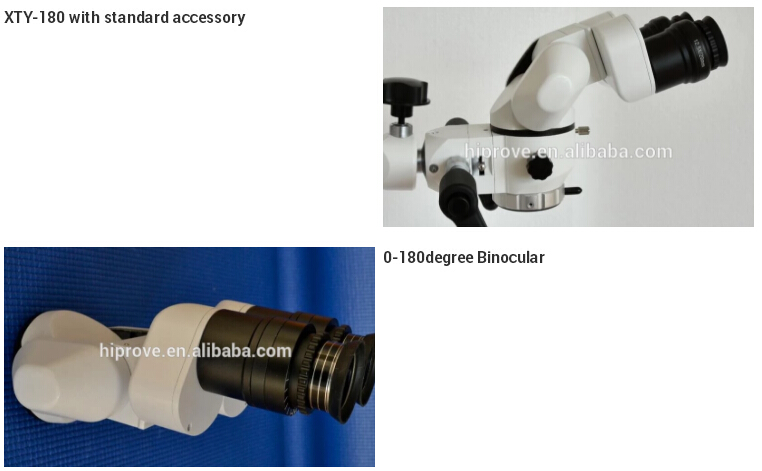

Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply: AC100V-AC240V

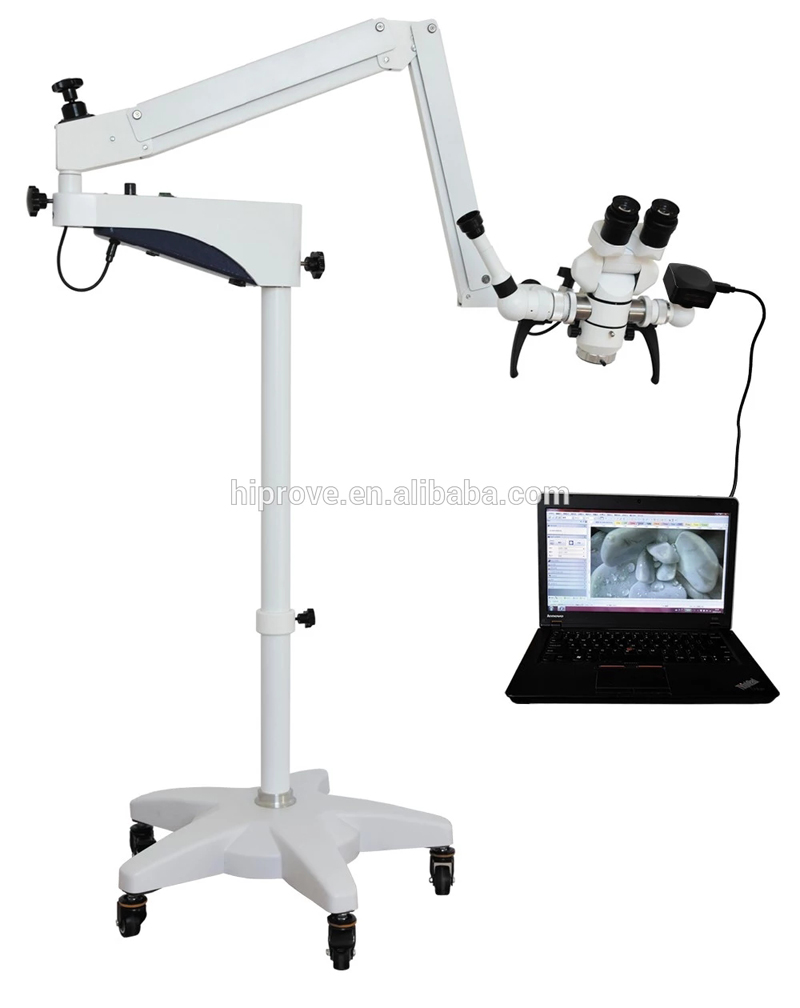

Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, 1080P Camera, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket

Table of Optical Characteristics for XTY-180 Operation Microscope:
Magnification of eyepiece 12.5X/20mm
Focal length of objective F=200mm F=250mm F=300mm(optional) F=400mm(optional)
Total magnification 6-16X 4.8-16.8x 4-10.7X 3-8X
Magnification on handwheel 1.6X 1X 0.6X
