| SPECIFICATION | PRODUCTS CODE | DONOR NEEDLE GAUGE | SETS/CARTON | CARTON SIZE(cm3) | GROSS WEIGHT(kg) | ||

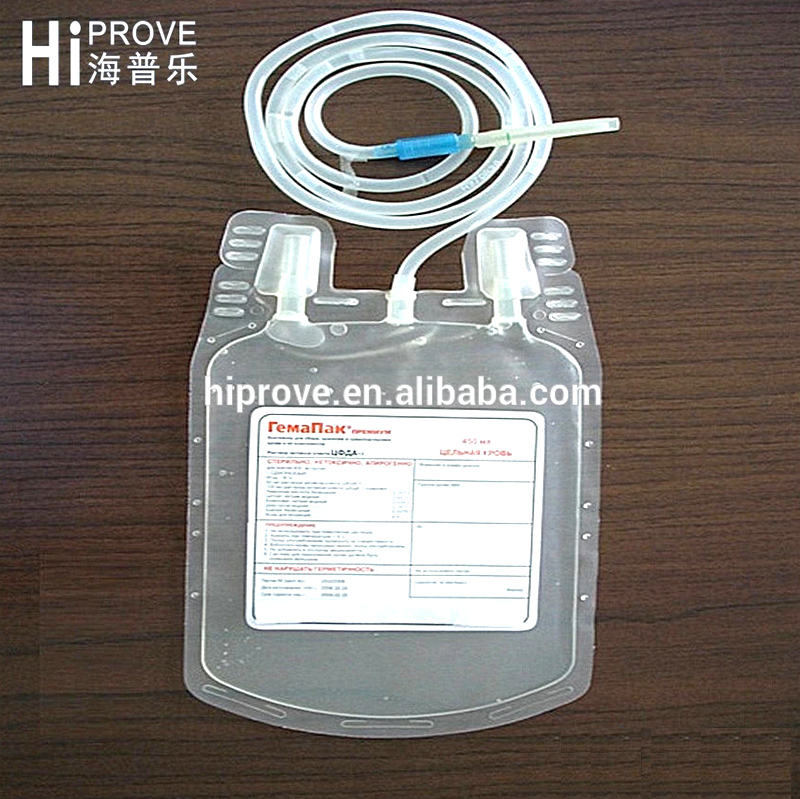

| Single Blood Bag | One 250ml Blood Collection Bag with CPDA1 | SC-250 | 16G or 17G | 50/100 | 36×36×18/51×32×26 | 5/10 | |
| One 350ml Blood Collection Bag with CPDA1 | SC-350 | 16G or 17G | 50/100 | 36×36×18/51×32×26 | 6/12 | ||

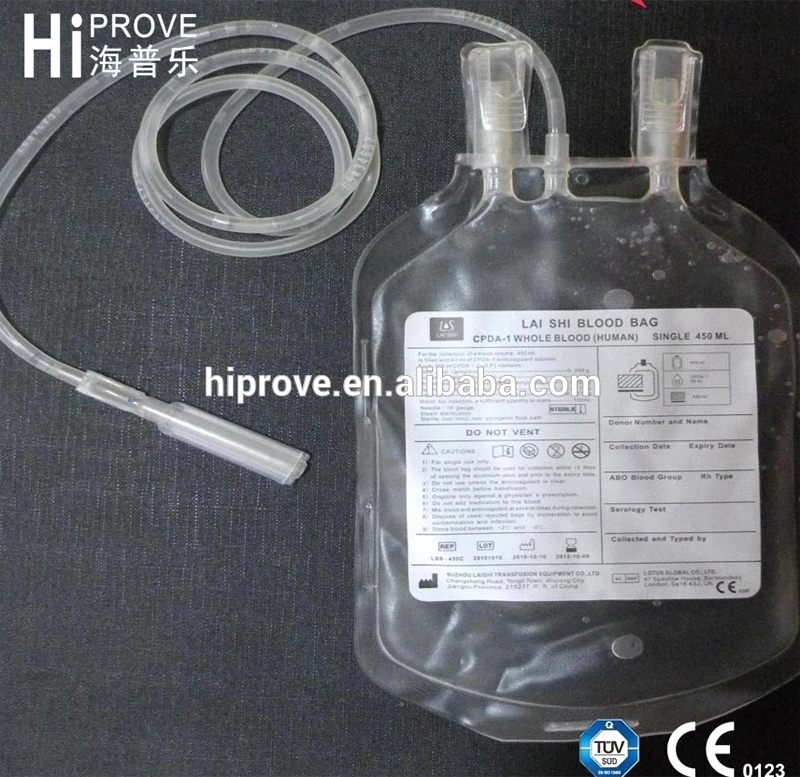

| One 450ml Blood Collection Bag with CPDA1 | SC-450 | 16G or 17G | 50/100 | 36×36×18/51×32×26 | 7/14 | ||
| One 500ml Blood Collection Bag with CPDA1 | SC-500 | 16G or 17G | 50/100 | 36×36×18/51×32×26 | 7.5/15 | ||
Features:
*Highly transparent Medical virgin grade PVC material,Sterile,non-toxic,non-pyrogenic
*High quality, peel-resistant label provides for convenient writing
* Ultra-thin walled 16G Venipuncture needle is optimal for reducing donor pain
*Soft twist-off needle cover provides excellent tamper-evidence
*Easy to break off the valve allows plasma transfer to both directions freely
*Rounded corners minimize the volume of blood lost in processing
*Safe and easy-to-open out-let port design provides protection from contamination
2.Specifications:
1. Disposable Rolled PVC blood bag
2. Sterilized by steam, non-toxic, pyrogen-free
3. Single, double, triple, quadruple
4. Filled with anticoagulant solution or empty
5. Primary Bag capacity available in 150ml to 500ml
6. Satellite Bag capacity available in 100ml to 450ml
7. Donor needle gauge size: metal or plastic needle at 16G or 17G
8. Package: Individual PE or PET vacuum pouch, 3 or 5sets/foil pouch, 60 or 100sets per carton
3.Optional:
1. Type of Anticoagulant solution: CPDA-1, CPD, SAGM or as clients request
2. Attached Blood Sampling device
3. Needle Protector
4. "Y" injection port
5. In-line Leukocyte Reduction Filter
6. Platelet Storage Bag (platelet storage for 3 to 5 days or up to 5 days)
7. Type of outlet Ports (twist off or tear off)
8. Volume of primary bag and satellite bags optional
9. Customize design welcomed
4. Common capacity:
one CPDA bag from 100ml to 500ml,
one 200 to 250ml SAGM bag with an empty satellite bag from 100 to 400ml(or customize).
Quadruple blood bag as:
250ml CPD Bag + 200 to 250ml SAGM bag + two 100 to 200ml empty satellite bag
350ml CPD Bag + 200 to 300ml SAGM bag + two 200 to 300ml empty satellite bag
450ml CPD Bag + 300 to 400ml SAGM bag + two 300 to 400ml empty satellite bag
500ml CPD Bag + 300 to 400ml SAGM bag + two 300 to 400ml empty satellite bag
5.Products Standard: USP, ISO 3826-1:2003 and Chinese Pharmacopoeia 2005.
6.Quality System Standard: ISO13485:2003 MDD93/42/EEC (CE), GMP for medicines & GMP for disposable sterilized medical equipments
