IV Infusion FLUID WARMER
Quick Details
  • Type:
  • First-Aid Devices
  • Brand Name:
  • HIPROVE
  • Model Number:
  • HIP-IVF
  • Place of Origin:
  • Shandong, China (Mainland)
  • Product name:
  • IV FLUID WARMER
  • Digital control:
  • High accurate
  • Application:
  • Children, neonates and VET
  • Tube Size:
  • 3.0~4.0mm
  • Flow Rate:
  • 2~20ml/min (against temperature span: 25~41)
  • Classification:
  • Class I / Type B
  • Feature:
  • Aid Device
  • Warranty:
  • 18 Months
  • Certificate:
  • CE ISO
  • MOQ:
  • 1 Set
  •
Packaging & Delivery
  • Packaging Details:
  • EXPORT STANDARD CARTON
  • Delivery Time:
  • Shipped in 30 days after payment
Product Description

 Our blood warmer is the best quality in China.We have enough experience in blood warm industry more than 15 year.For now,we are a listed company in China.We can provide OEM service to print your logo.Welcome to visit us.Hope we can establish a long term business relationships.



1,Conditions of transportation and storage

Ambient temperature: -40~+55℃

Relative humidity: ≤80%

2,Operation conditions

Ambient temperature: 5~40℃

Relative humidity: ≤80%

Power supply: AC 220V+22 V

Frequency: 50Hz+1 Hz

Power: ≤250VA

Temperature control: at the inlet, the solution temperature ranges between (20±2)℃, and the flow rate ranges within 40~150 drops/min. The infusion warmer, with its heating body, can control the solution temperature at the outlet within 30~41℃. The temperature control allowance is ±1.0℃.

Display resolution: 0.1℃

Suitable infusion rate: 40~150 drops/min

Safety measure: the power supply will be automatically cut off when the heating body reaches 43℃.

Applicable range: this product is used to warm the infused solution in the operating room and in-patient department.

Max. weight: less than 2.5kg

II. Components of system

HIP-TF-I Infusion Fluid Warmer is consisted of below four parts:

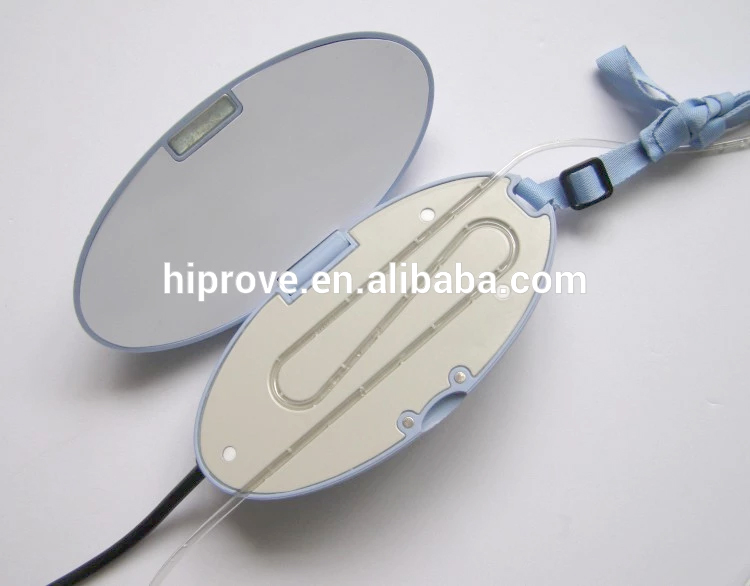

1. Heating source: the component that heats the infusion fluid through the warmer, including heating parts and the aluminum grooves used for installation of infusion tubing sets.

2. Power supply: supplying power to the device.

3. Controlling module: the circuits for temperature measurement, temperature displaying and heating parts controlling.

4. Shell body: including metal heating shell, fixed bracket, operation pan
